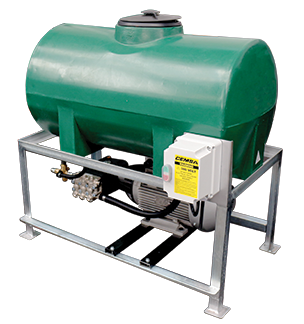

The PWBC Heavy Duty is a stationary electrical cold water high-pressure washer built for high-throughput commercial and industrial wash bay installations. Mounted on a heavy-gauge electro-plated frame with a 250L water tank, it connects to a mains supply and delivers continuous high-pressure output for demanding wash applications — from truck and bus washing to industrial plant cleaning and food processing facilities. Four variants span 200 to 250 bar at flow rates up to 1260 l/h, with an optional double-pump configuration available for maximum output where single-pump flow rates are insufficient.
Model Variants & Specifications
| Specification | PWBC2015 | PWBC2515 | PWBC1823 | PWBC2523 |
|---|---|---|---|---|
| Pressure | 200 bar | 250 bar | 180 bar | 250 bar |
| Flow Rate | 900 l/h | 900 l/h | 1260 l/h | 1260 l/h |
| Power Supply | 380V / 5.5kW / 3-phase | 380V / 7.5kW / 3-phase | 380V / 7.5kW / 3-phase | 380V / 11.0kW / 3-phase |
| Motor | 4-pole / 1450 rpm | |||
| Pump | CEMSA JPC 1535-N | CEMSA JPC 1535-N | CEMSA JPC 2330-N | CEMSA JPC 2330-N |
| Hose (Standard) | 10m 3/8″ R2 | |||
| Lance | 900mm | |||
| Water Tank | 250L with float valve | |||
| Weight | 100.2 kg | 114.7 kg | 114.7 kg | 126.7 kg |
| Dimensions (mm) | 940 x 680 x 1000 | |||
Double Pump Version Available
All four PWBC Heavy Duty models are available in a double-pump configuration, effectively doubling flow output for high-throughput washbay installations where multiple operators work simultaneously or wash cycle times need to be minimised. Contact GreenSeal for double-pump pricing and specifications.
Machine Features
| Heavy-Gauge Electro-Plated Frame Robust steel frame with electro-plated corrosion protection. Designed for permanent washbay installation in harsh environments — chemical splash, high humidity, and continuous daily use. The larger footprint (940 x 680 x 1000mm) accommodates the 250L tank and high-output pump assembly. |
250L Water Tank with Float Valve Large-capacity buffer tank ensures consistent pump inlet pressure even where mains supply flow rate is marginal. The automatic float valve maintains tank level continuously, preventing cavitation and pump damage during extended high-flow wash cycles. |
| CEMSA JPC Series Pump at 1450 RPM The JPC series CEMSA plunger brass pump is engineered for continuous industrial duty. Running at 1450 RPM, it delivers lower wear rates and longer service intervals than comparable high-speed pumps. Ceramic pistons and brass heads are field-serviceable with standard spares kits. |
Direct Online (DOL) Starter Industrial DOL starter with thermal overload protection across all models. All PWBC Heavy Duty variants require a 380V three-phase supply — sized appropriately from 5.5kW up to 11.0kW depending on the model selected. |
Standard Accessories Included
| ML955 High Pressure Gun Heavy-duty stainless trigger gun for industrial use |
900mm Lance Full-length lance for comfortable operation from standing height |
Flat Fan Nozzle ¼” MEG nozzle sized to each model’s pressure and flow |
| 10m 3/8″ R2 HP Hose Heavy-duty 3/8″ rated hose for higher flow models |
Rotating Quick Coupling 3/8M MVG08 swivel — prevents hose twist at the gun |
ML955 G3/8F–G1/4F Adaptor Stainless steel lance adaptor fitting |
Typical Applications
| Truck & Bus Wash Bay High-flow output and 250 bar pressure make the PWBC Heavy Duty the workhorse of commercial vehicle washing. The 250L buffer tank and high-output pump handle back-to-back truck washes without pressure drop. Swing boom options keep hose overhead for efficient walk-around washing. |
Mining & Construction Equipment Fixed washdown installations on mine sites and construction yards for clearing mud, clay, and aggregate from heavy equipment before maintenance or dispatch. The robust electro-plated frame and industrial pump withstand the demanding conditions of these environments. |
| Food & Beverage Processing Stationary installation for washdown of processing lines, cold rooms, and equipment. Cold water models are suitable where heat-sensitive products or surfaces are involved. The 250L tank ensures uninterrupted supply during extended cleaning cycles required by food safety programs. |
Industrial Plant & Facilities Cleaning of manufacturing plant, warehouses, loading bays, and yard surfaces. Double-pump configurations are particularly suited to large facilities where multiple operators need to work simultaneously from a single power point installation. |
All PWBC Heavy Duty models require a 380Vac three-phase supply. Motor sizing ranges from 5.5kW to 11.0kW — ensure circuit protection and cabling is sized accordingly. A pressurized mains water inlet is required. Installation must comply with local electrical and plumbing regulations. Always wear appropriate PPE including face shield, waterproof gloves, and safety footwear when operating high-pressure equipment.
